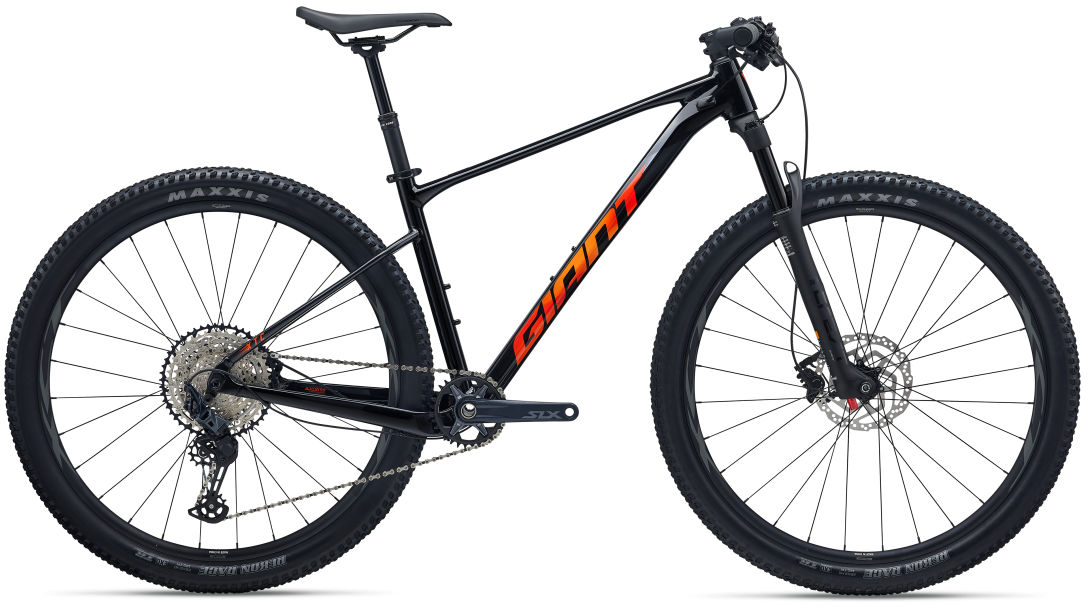

Giant XTC SLR 29 1

Giant XTC SLR 29 1
$2,199.00
Color: Abyss Black
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable

Details

Responsive ride quality and maximum efficiency on fast, flowy singletrack. This lightweight composite hardtail is a great choice for XC racing or KOM chasing.

Frame SizeSmallMediumLargeX-Large
Seat tube length (cm / in) 38.0 / 14.96 43.1 / 16.97 47.5 / 18.70 52.5 / 20.67
Seat post insertion depth (cm / in) 33.5 / 13.19 20.5 / 8.07 25.0 / 9.84 30.0 / 11.81
Seat tube angle (degree) 74 74 74 74
Top tube length (cm / in) 59.5 / 23.43 61.4 / 24.17 63.5 / 25.00 66.5 / 26.18
Head tube length (cm / in) 9.5 / 3.74 9.5 / 3.74 10.5 / 4.13 11.5 / 4.53
Head tube angle (degree) 69.5 69.5 70 70
Fork rake/offset (cm / in) 5.1 / 2.01 5.1 / 2.01 5.1 / 2.01 5.1 / 2.01
Trail (cm / in) 9.5 / 3.74 9.5 / 3.74 9.5 / 3.74 9.5 / 3.74
Wheelbase (cm / in) 111.7 / 44.02 113.6 / 44.72 115.2 / 45.35 118.3 / 46.54
Chainstay length (cm / in) 44.0 / 17.32 44.0 / 17.32 44.0 / 17.32 44.0 / 17.32
Bottom bracket drop (cm / in) 5.8 / 2.28 5.8 / 2.28 5.8 / 2.28 5.8 / 2.28
Stack (cm / in) 60.7 / 23.90 60.7 / 23.90 61.8 / 24.33 62.8 / 24.72
Reach (cm / in) 42.1 / 16.57 44.0 / 17.32 45.8 / 18.03 48.5 / 19.09
Stand over height (cm / in) 72.7 / 28.62 75.7 / 29.80 78.5 / 30.91 81.8 / 32.20
Handlebar width (cm / in) 74.0 / 29.13 74.0 / 29.13 74.0 / 29.13 74.0 / 29.13
Stem length (cm / in) 6.0 / 2.36 7.0 / 2.76 8.0 / 3.15 9.0 / 3.54
Crank length (cm / in) 17.0 / 6.69 17.5 / 6.89 17.5 / 6.89 17.5 / 6.89
Wheel size 29" 29" 29" 29"
Frame SizeSmallMediumLargeX-Large
Rider height (cm / in) 163–172 / 64.17–67.72 171–180 / 67.32–70.87 179–188 / 70.47–74.02 187–198 / 73.62–77.95

Specs

Frame ALUXX SLR-grade aluminum, 12x148mm thru-axle
Fork Giant Crest 34 RRL, 100mm, 15x110mm thru-axle, remote lockout
Rims Giant XCT 29, 25mm IW
Hubs Shimano C500, alloy, sealed bearing, Centerlock [F] 15x110 thru axle, [R] 12x148 thru-axle
Spokes Sapim Leader
Tires Maxxis Recon Race 29x2.4, TLR, EXO, tubeless, 120TPI, folding
Bottom Bracket cartridge
Crankset Shimano SLX, 32t, 52mm chainline
Shifters Shimano SLX, 1x12
Rear Derailleur Shimano SLX M7100
Cassette/Freewheel Shimano SLX, 12-speed, 10x51
Chain KMC X12
Brakes Shimano BR-MT500, hydraulic Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers Shimano Deore BL-MT501
Handlebars Giant Connect XC, 31.8mm
Tape/Grips Giant Sole-O
Stem Giant Contact
Seatpost Giant Contact Switch Core dropper, 30.9 S,/M: 100 travel / 30.9 x 350mm, L/XL: 120 travel / 30.9 x 400mm
Saddle Giant ErgoContact Trail

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Abyss Black / Small / 29-inch 04711291235670 1119019124 210000013982
Abyss Black / Medium / 29-inch 04711291235687 1119019125 210000013983
Abyss Black / Large / 29-inch 04711291235694 1119019127 210000013984
