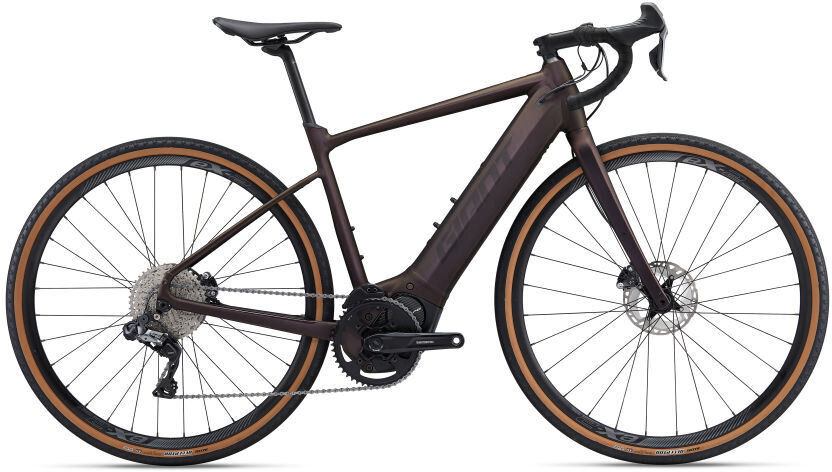

Giant Revolt E+ - 2022

Giant Revolt E+
Please select options


From rough roads to gravel, dirt and mixed terrain adventures, this versatile drop bar E-bike gives you the power to ride farther and faster on any route you can dream up. The reengineered frameset has a new SyncDrive Pro pedal-assist system that’s powered by a Shimano EP8 motor. This customized powertrain produces smooth acceleration on paved roads, gravel or dirt. You can switch support modes using Shimano Di2 shift levers, allowing for a clean cockpit setup without an additional control unit. The unique SmartAssist motor automatically adapts to your riding style so you don’t need to adjust support levels while riding. Wider tires and integrated rack mounts allow you to customize your adventure with fenders, racks or whatever other accessories you desire.

Motor - SyncDrive Pro, 85Nm, Powered by Shimano EP8
Controller - RideControl GO, frame integrated, Support up/down from STI levers
Display - ANT+ Wireless display compatible
Battery - EnergyPak Compact 500Wh EnergyPak Plus range extender compatible
Frame - ALUXX SL Aluminum
Fork - Advanced-grade composite,12x100 thru-axle
Handlebar - Giant Contact XR D-Fuse, 31.85° back sweep, flared drop
Grips - Giant Connect tape
Stem - Giant Contact
Seatpost - Giant D-Fuse SL, composite
Saddle - Giant Approach
Shifters - Shimano GRX Di2 ST-RX815-R/L 1x11speed
Rear Derailleur - Shimano GRX Di2 RD-RX817
Brakes - Shimano BR-RX810, hydraulic disc, 180mm
Brake Levers - Shimano ST-RX815 hydraulic disc
Cassette - Shimano CS-M5100-11, 11-42, 11-speed
Chain - KMC e.11 Turbo, EcoProteq
Crankset - Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
Rims - Giant eX 2, Tubeless Ready, 700c Aluminum
Hubs - Giant Performance Tracker Road, Sealed Bearing
Spokes - Sapim E-Lite [r] Race [f]
Tires - Maxxis Receptor, EXO, Skinwall, 700x40c (622x40), Tubeless, w/o Reflex
Extras - Tubeless kit (liquid, valves, levers, manual, tool)


2022 Revolt E+

2022 Giant Revolt E+

Part Numbers

Option UPC MPN Store SKU
Rosewood / Small 4712878690431 2103603104 210000009422
Rosewood / Medium/Large 4712878690455 2103603106 210000009424
Rosewood / Large 4712878690462 2103603107 210000009425
